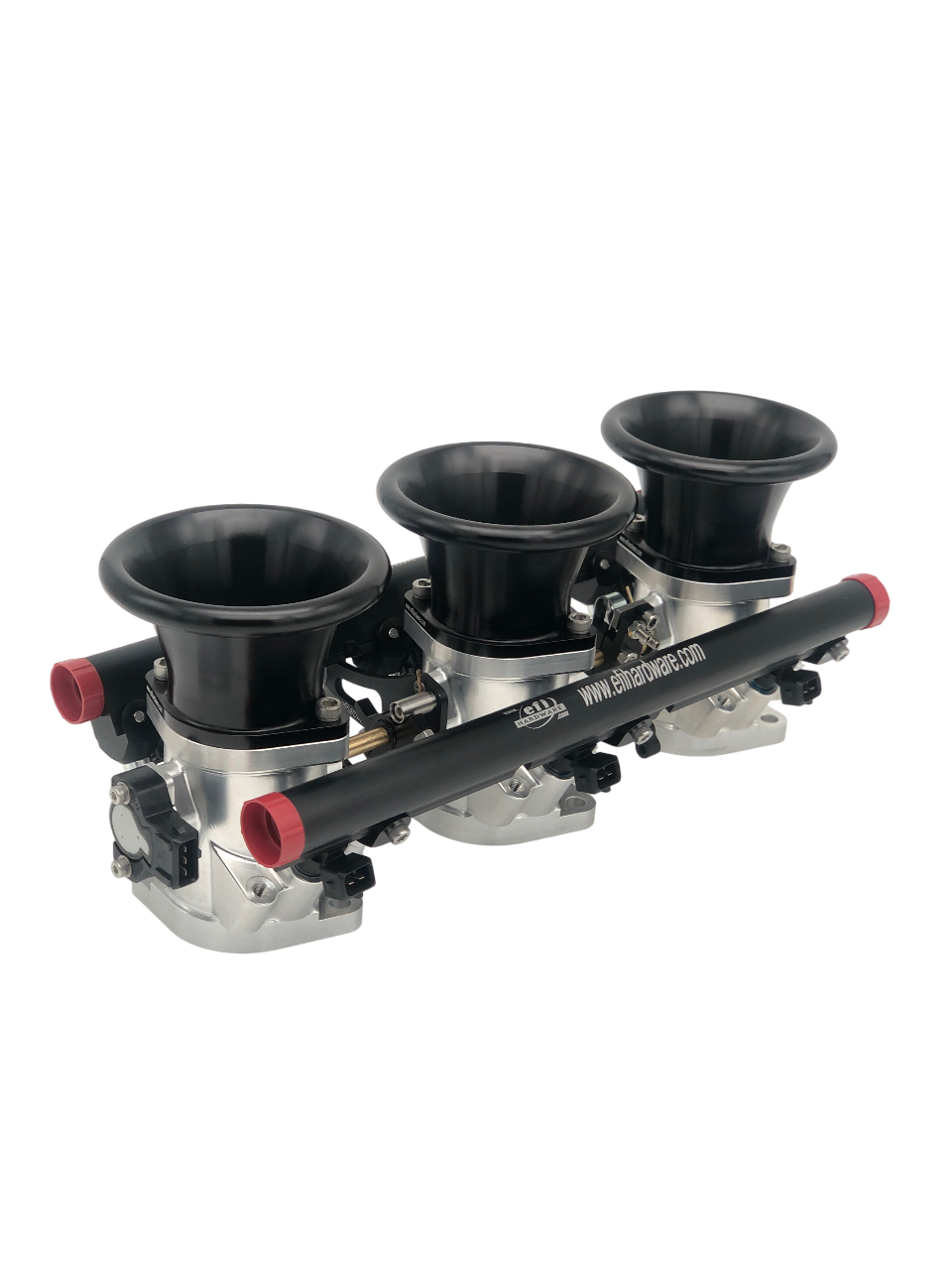

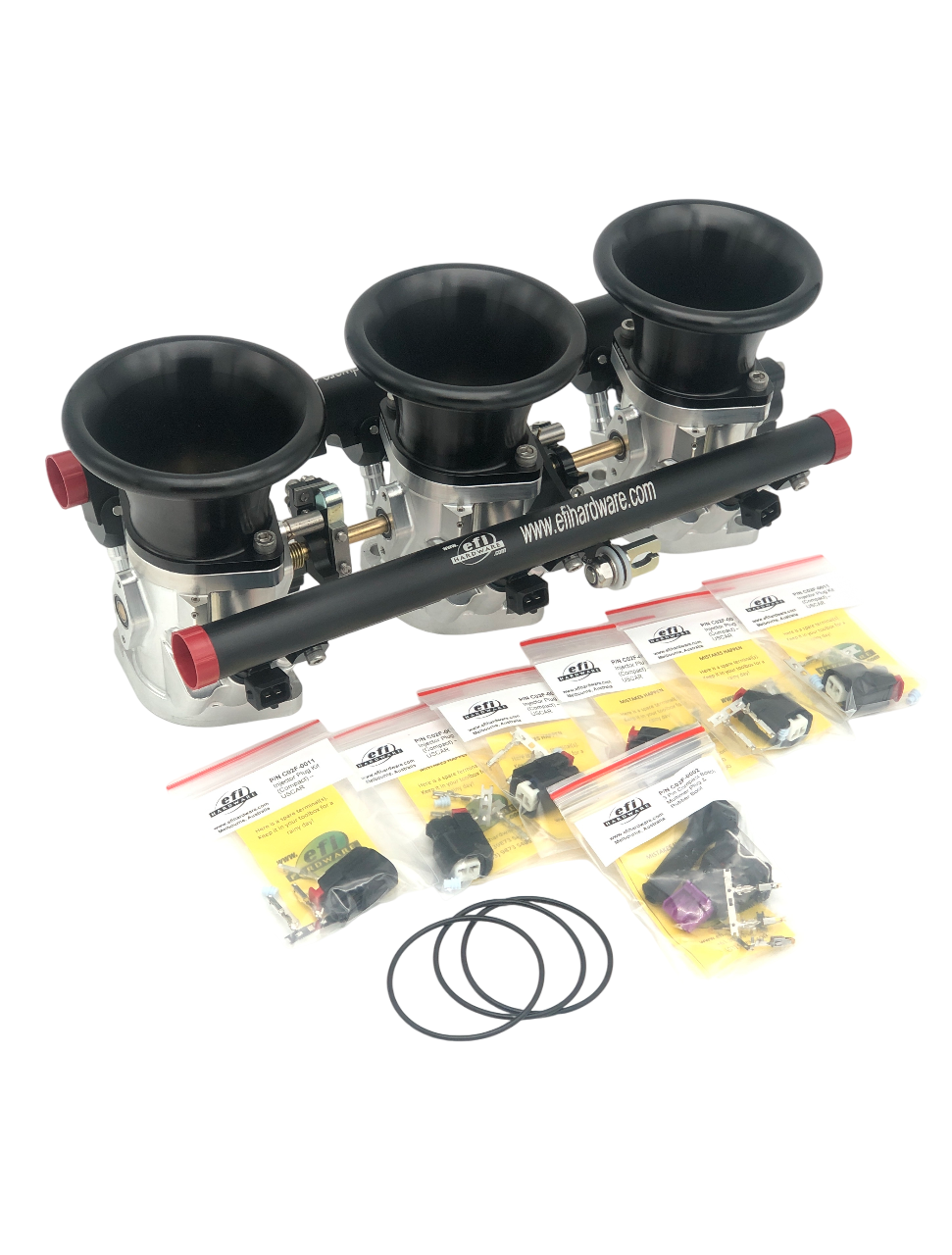

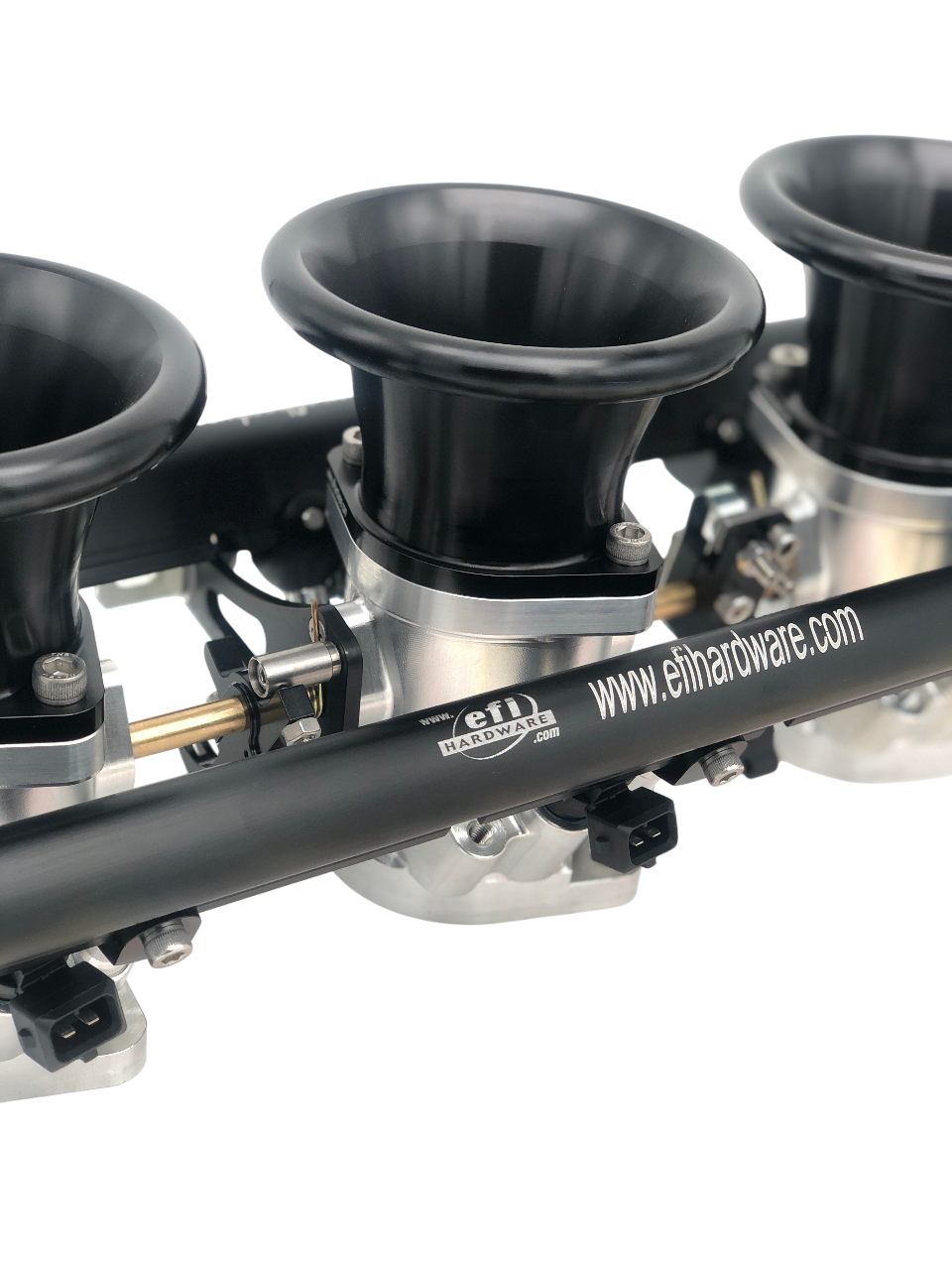

Pro Series Fuel Injection – 3 rotor

Features:

• EFI Hardware Pro series billet taper bore throttle body (55/53/50mm)
• O-ringed base (no gaskets required)
• Short crank 3 rotor and long crank 20B options available.
• Billet fuel rails.
• Billet hi flow ram tubes.
• 6x Bosch 730cc injectors (other injector sizes available on request)
• Full range TPS.
• Throttle cable pull/stop/bracket.
• Throttle shaft joiner/balancer.
• Airflow to support over 11,000rpm and 450+HP.
• Improved throttle response and mid-range power delivery.
• Suitable for all fuel types including methanol (larger injector options available for alcohol fuel).
• DBW (E-throttle) upgrade available.

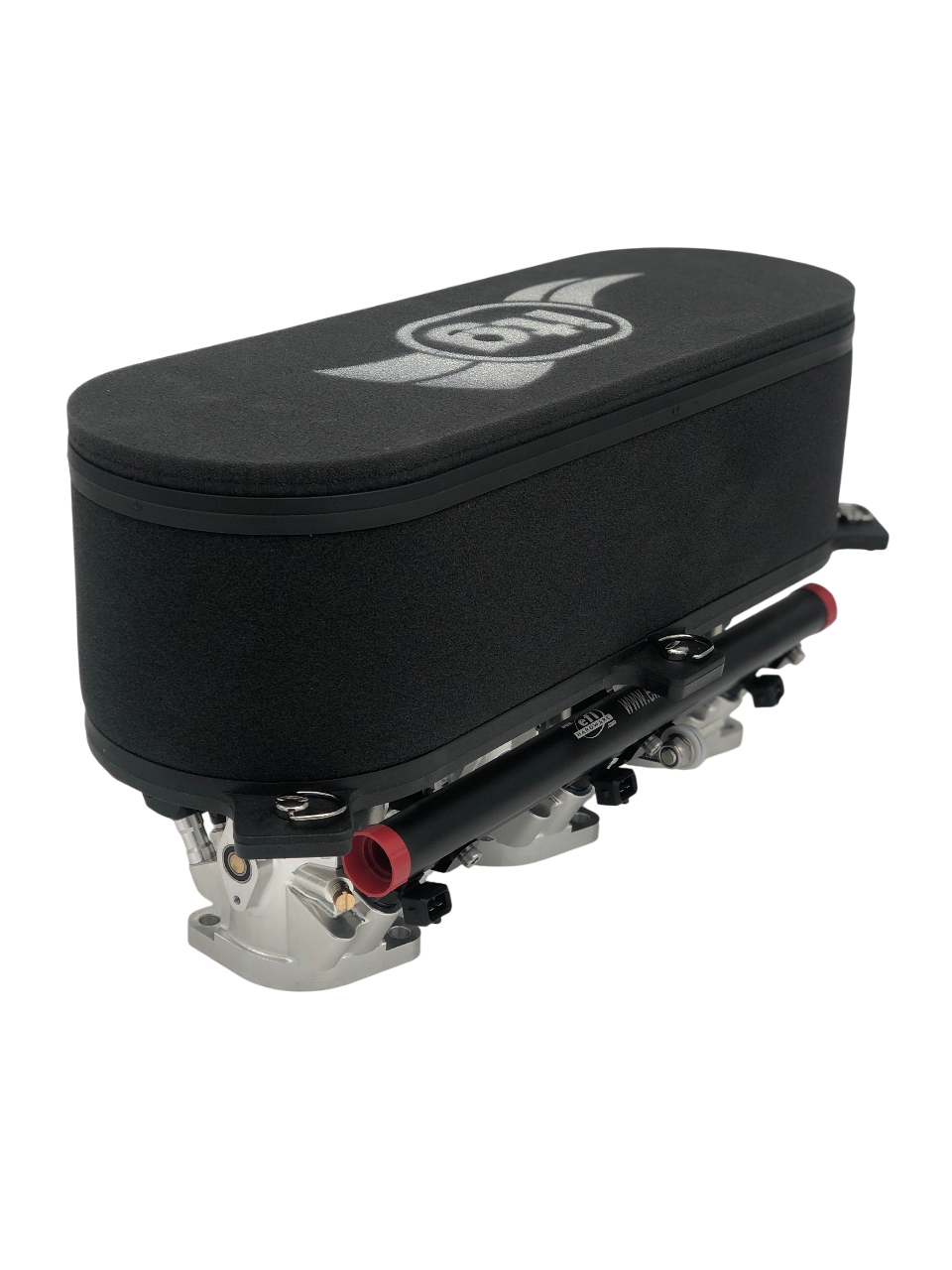

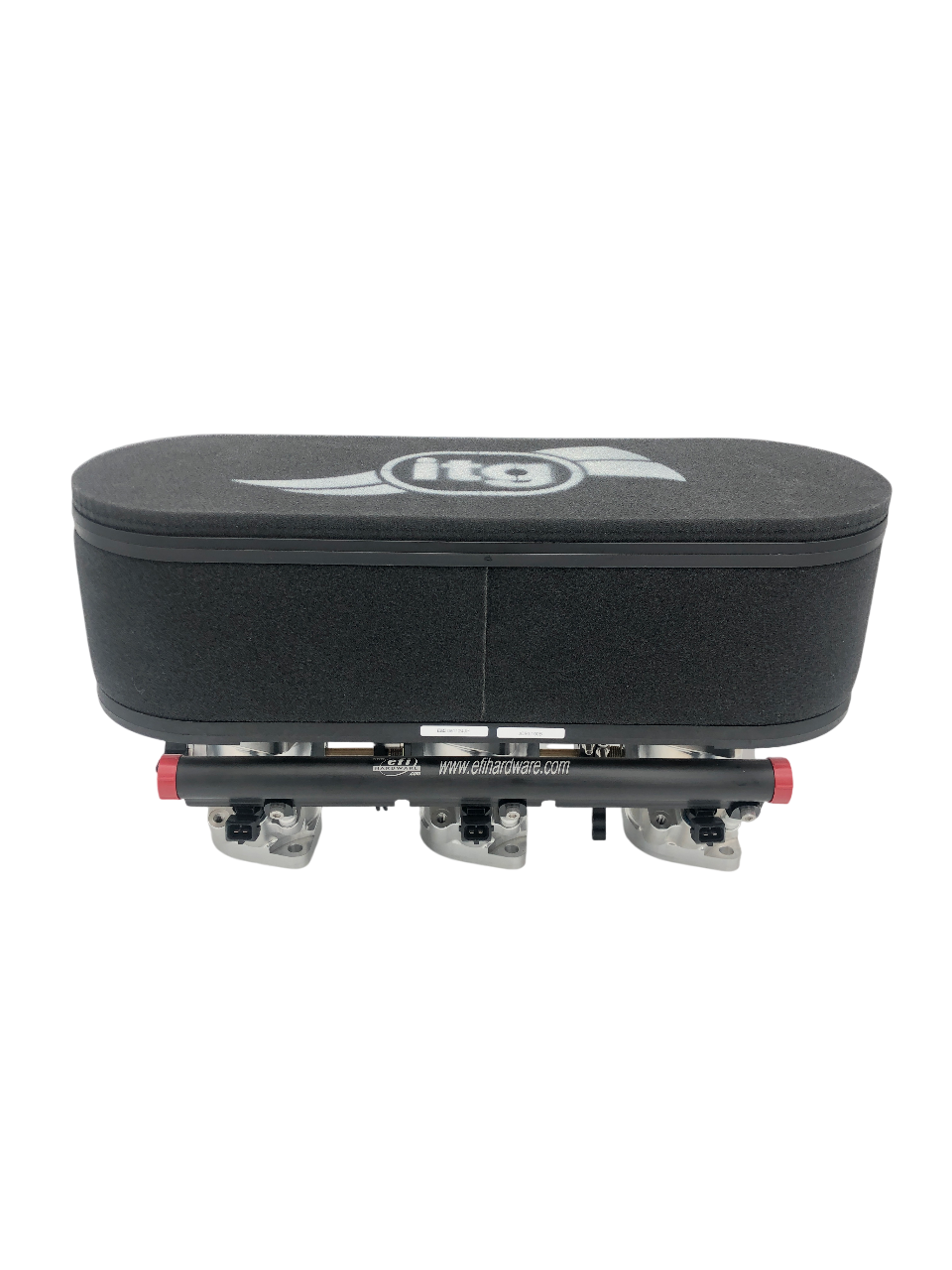

$1050NZD – add IITG filter with CNC base, billet alloy filter spacers & hardware
Taper bore vs conventional parallel bore: a tapered bore increases airspeed, resulting in higher velocity past the butterfly. This improves throttle response and gives a mid range power increase without giving away any power at the top end. Well suited to street and race engines alike.
This is the standard throttle body used on our high output Peripheral Port engines making well over 450HP at the wheels.
