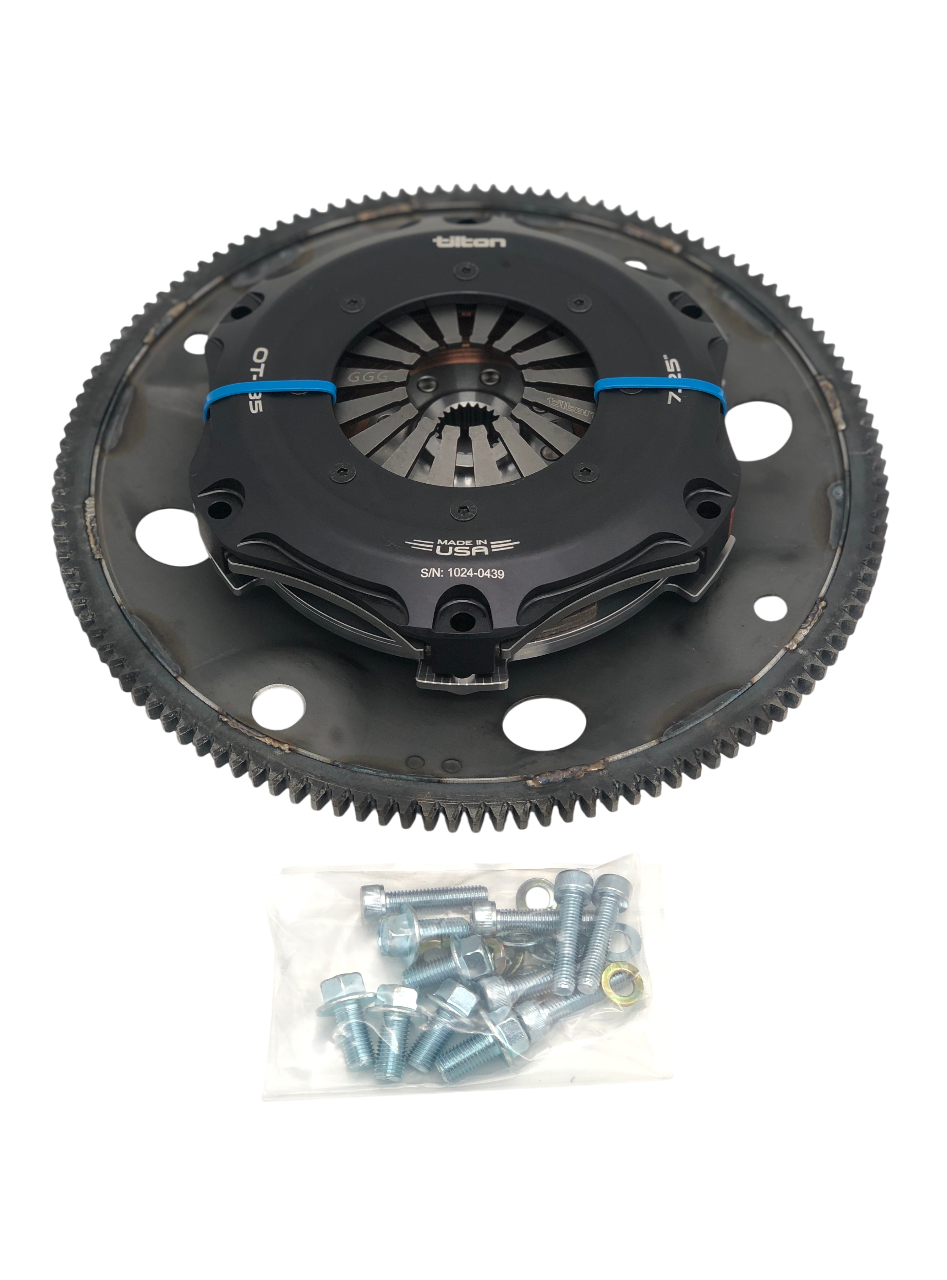

Ultra-light clutch & flywheel combo – 7.25in

Recommended for 2 rotor NA circuit racing and any other application where rapid engine response takes priority. Popular in classes where aluminium flywheels are prohibited. We use these behind all our circuit race competition engines.

• 12.5lb combined weight.

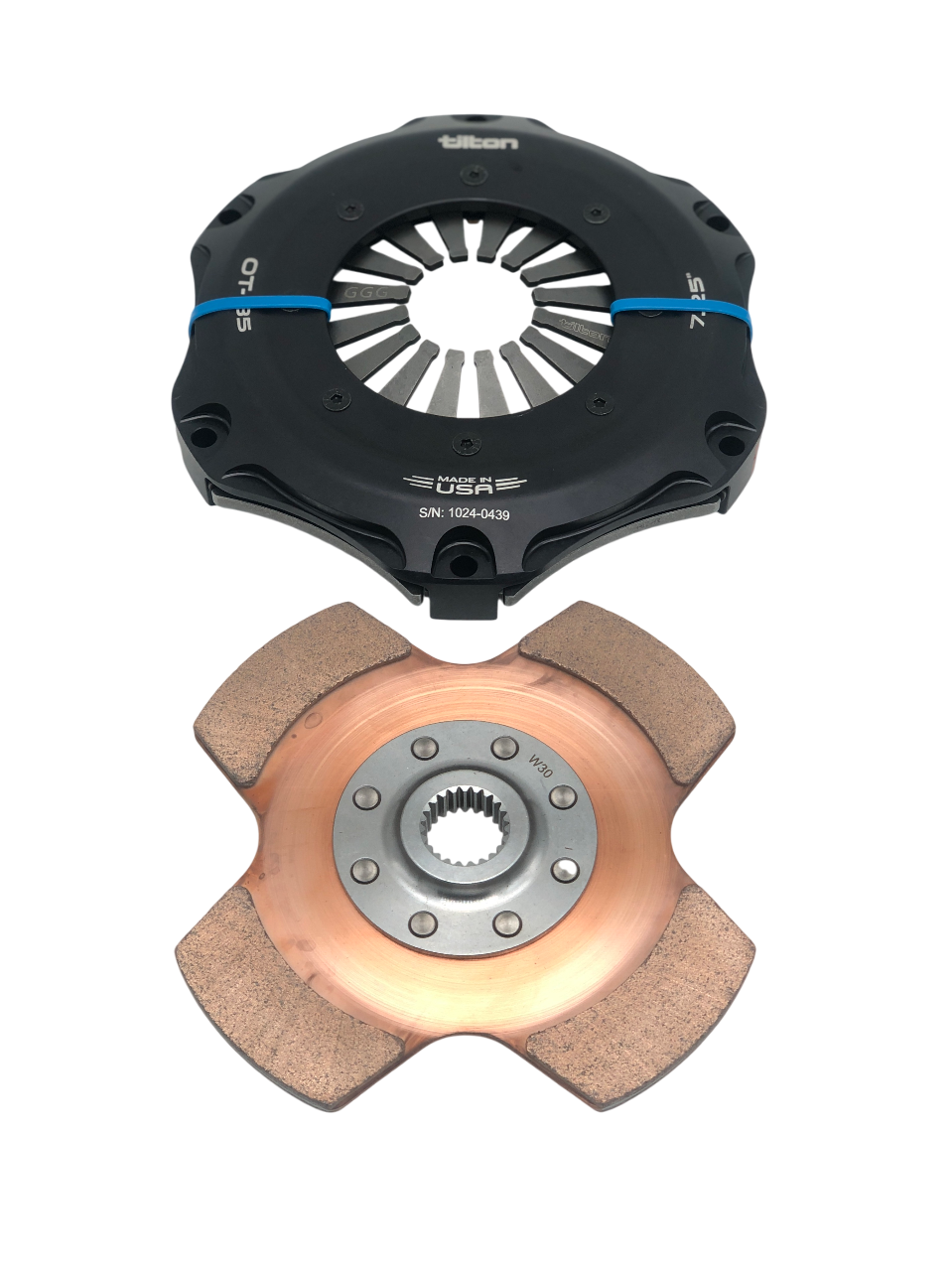

• Tilton rally single plate clutch assembly weighs 1.1lb (0.5KG) less than its Quartermaster counterpart.
• Crack resistant clutch disk.

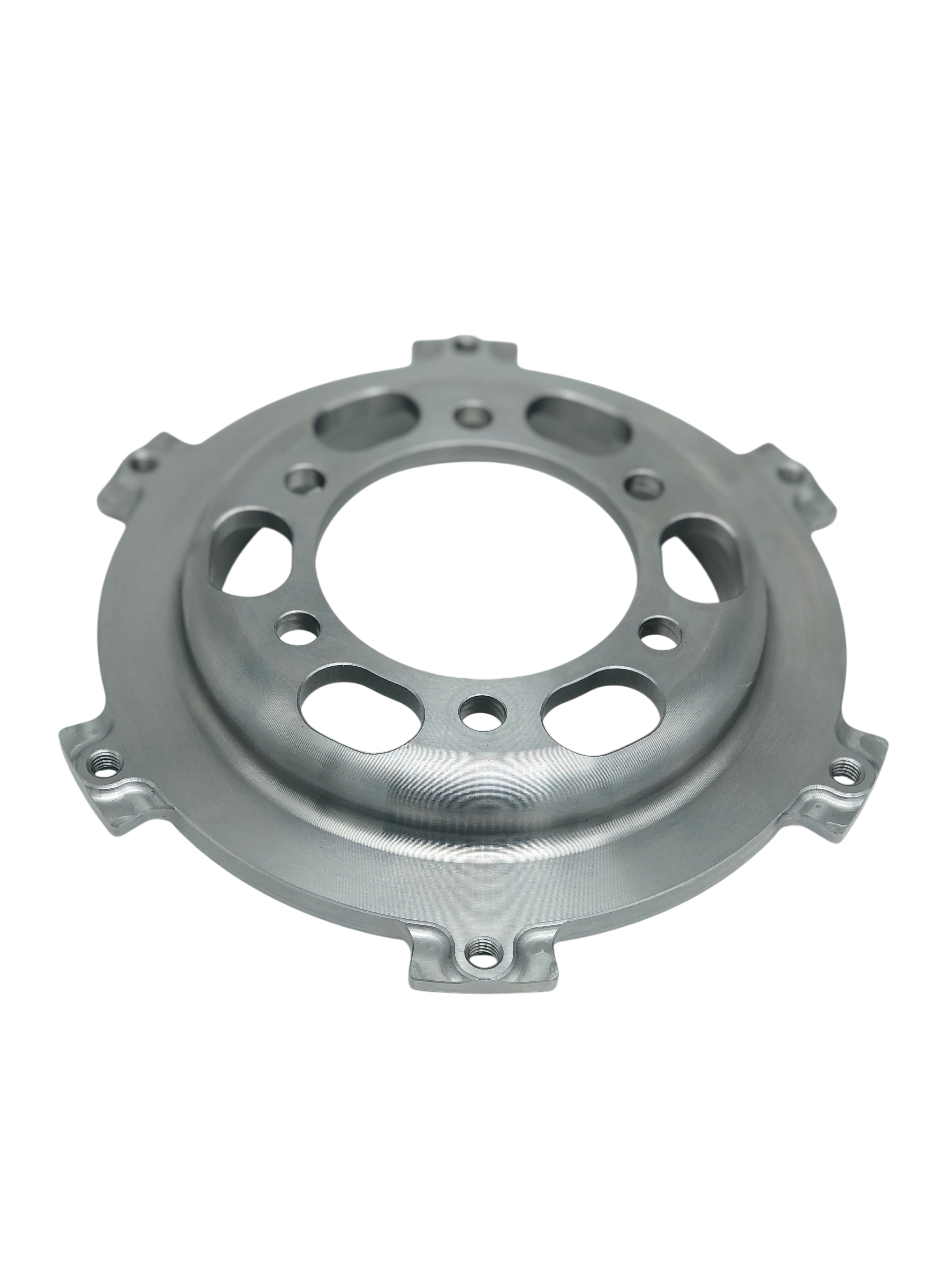

• Billet button flywheel CNC machined right here in Mt Maunganui from 4140 chromoly steel.
• Proven to 12,000+rpm.
• Lowest moment of intertia in a 320mm steel flywheel/clutch combo (only an aluminuim flywheel has a lower MOI);
• No flywheel spokes to crack over time.
• Clutches stocked in Mazda 22 and 23 spline, Toyota 21 spline, & GM 26 spline.
• Suits all 13B turbo & Rx8 engines and any rotary (12A, 13B, 20B) running a 13B turbo/Rx8 bell housing (320mm ring gear).
• Supplied as a balanced assembly (bolt on and go).

New Mazda rear counterweights available to suit all engine models. High tensile clutch/flywheel bolt kits available.

–4140 vs 1045 material– 4140 is significantly stronger and has a superior wear rate compared to the more commonly used 1045 material. Subsequently 4140 has a higher purchase price, hence the reason our flywheels cost a little more than some others.
